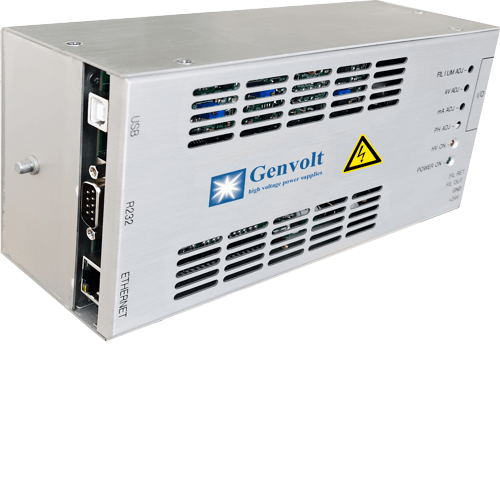

The XRG is a superior performance high voltage X-Ray generator power supply that provides a dependable source for tomography systems. Genvolts high frequency X-ray generator is a portable high voltage module. Subsequently allowing it to be integrated with many variants of X-Ray tube manufacturers products.
The X-Ray Generator Manufacturing Standards
Genvolt are a world leader in the design, manufacturing, and supply of high voltage power supplies. We combine our knowledge with class leading quality and robust builds. As well as that we appreciate that a consistent high voltage generator is an important element of an X-ray generation system. Thus, the XRG has been designed and manufactured to our exacting and impeccable standards. Consequently, each component has been engineered and integrated to withstand the rigours of use and high frequency interference.
Main X-Ray Generator Features
The XRG is small enough to fit on an A5 piece of paper. As a result, it weighs only 2Kg, making it highly portable. Undoubtedly these factors allow for easy incorporation into current or new equipment projects. Coupled with its compactness the unit is highly capable of meeting and exceeding expectations. Particularly with its output voltage range of 50kV to 60kV and filament current of 0-3.5A. In addition to these features, we can supply the XRG with either positive or negative polarity remote programming is available a DB15 interface.
X-Ray Generator Applications
The Genvolt XRG portable X-Ray generator is an ideal primary power source for an array of X-Ray imaging devices, be it analytical, industrial, or medical.
In brief the XRG has application uses in:
| Input Voltage | 24VDC |
|---|---|
| Input Frequency | DC |
| Output Voltage | 50kV, 60kV |
| Output Power | 60W |
| Polarity | Negative, Positive |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | 0. 1% |
| Load Regulation | 0.01% |
| Line Regulation | 0.01% |
| Stability | 0.05 |
| Operating Temperature | -10°C, 0°C, 10°C, 15°C, 35°C, 40°C |
| Operating Humidity | 0 to 90% non-condensing |
| Cooling Method | Forced Air |
| Control | Remote |
| Monitoring | Remote |
| Protection | Arcing, Short Circuit |
For local control, connect pin 7 to pin 8 (voltage) and pin 10 to pin 11 (current). Adjust the voltage and current setpoints via the potentiometer openings in the top cover that are labelled xxx and yyy. Power supply in the upper panel has a circular opening.
Adjust the internal potentiometer for setting voltage and current.
DB15 Pin Details
| Pin Number | Type | Value |
| 1 | Ground | Ground |
| 2 | Voltage Display | 0-10Vdc full scal, Zout = 1kΩ |
| 3 | Current Display | 0-10Vdc full scal, Zout = 1kΩ |
| 4 | External Interlock | Short to PIN15, High Voltage Open |
| 5 | +10Vdc Reference | Maximum Current 1mA, Voltage +10Vdc |
| 6 | Filament Current Display | 1V=1A, Potentiometer Adjustment |
| 7 | Voltage Remote Control | Input 0-10Vdc Full Scal, Zin = 10MΩ |
| 8 | Voltage Local Control | Output 0-10Vdc, Potentiometer Adjustment |
| 9 | Filament Limit Setting Display | 1V=1A, Potentiometer Adjustment, Zout = 10kΩ |
| 10 | Current Remote Control | Input 0-10Vdc Full Scal, Zin = 10MΩ |
| 11 | Current Local Control | Output 0-10Vdc, Potentiometer Adjustment |
| 12 | Idle | Optional Safety Interlock Wiring |
| 13 | Idle | Optional Safety Interlock Wiring |
| 14 | Filament Preheat Setting Display | 1V=1A, Potentiometer Adjustment |
| 15 | +24V Ground | +25V Ground |
Remote Control Interface
Standard USB, RS232, Ethernet digital interface can control the power supply through GUI program. This makes it easy to operate and saves time. When the voltage and current settings are 0 at the same time, this is local control and can be used for display. When the voltage and current are not equal to 0, it is controlled by the software, and the power supply can be set and displayed.
| 1 | TX+ | 5 | NC |
| 2 | TX- | 6 | RX- |
| 3 | RX+ | 7 | NC |
| 4 | NC | 8 | NC |
In conclusion, Genvolt are a world leading manufacturer and distributor of efficient, high quality, high voltage power supplies. Likewise, our class leading portfolio of x-ray generator power supplies can support a wide variety of demanding operations. Designed exclusively by Genvolt, using the latest in electronics and high voltage techniques the XRG series are cost-efficient and sturdy. Last but not least they are all built to our exacting standards.
