The Genvolt range of Industrial X-Ray Cables offer a complete range of High Voltage interconnection solutions for non-destructive testing, computed tomography and metrology in industry and science.

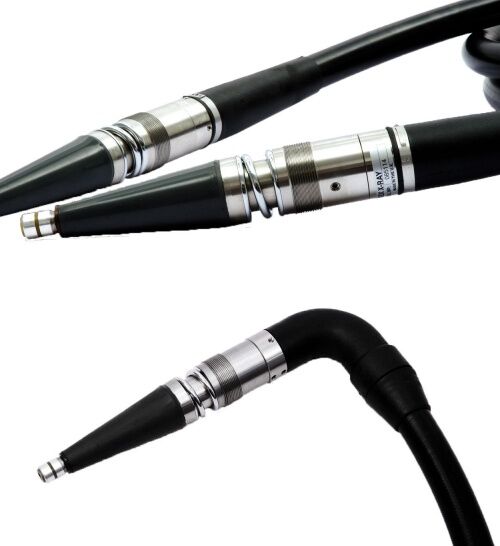

Spring loaded connectors
Spring loaded straight connectors and right-angle spring loaded connectors that provide a highly reliable, precision connection solutions that are capable of thousands of cycles.
The size of the connector, determines which flange is required. As with the above these are available in differing sizes with the size being proportional to the maximum voltage. Lower voltages use smaller connectors and therefore smaller cable, whereas higher voltages require a larger connector and thicker cable. The different size connectors are to fit on the differing cable sizes. 100kV (R10), 160kV (R24), 225kV (R28), up to 350kV (R30).
Connector type
| R10 | R10 SL * | R10 RA* | R10 SL RA | R24 | R24 SL | R24 RA | R24 SL RA | |
| C2212 | 100kV | 100kV | 100kV | 100kV | 100kV | 100kV | – | – |
|---|---|---|---|---|---|---|---|---|
| C2042 | – | – | – | – | 160-225kV | 160-225kV | 160-225kV | 160-225kV |
| C2236 | – | – | 225kV | 225kV | 225kV | 225kV | 225kV | |
| R28 | R28 SL | R28 SL | R28 SL RA | R30 | R30 SL | R30 RA | R30 SL RA | |
| C2212 | – | – | – | – | – | – | – | – |
| C2042 | 225kV | 225kV | 225kV | 225kV | 230kV | – | 230kV | – |
| C2236 | 225kV | 225kV | 225kV | 225kV | 300kV | 300kV | 300kV | 300kV |
*SL= Spring loaded *RA= Right angle
Clamping flanges
| Part Number | Description | Length | Thread |
| T20051/A | R10 Tube | 80mm | – |
|---|---|---|---|
| T20052 | R10 Generator | 85mm | – |
| T20785/A | R10 Right Angle Small | 25mm | M48 x 1.5mm |
| T20785/B | R10 Right Angle Large | 25mm | M48 x 1.5mm |
| T20131/A | R24 Straight | 102mm | M45 x 1.5mm |
| T20697 | R24 Straight c/w Cut Outs | 102mm | M45 x 1.5mm |
| T20045/F | R24 Right Angle | 100mm | M45 x 1.5mm |
| T20697/A | R24 Right Angle c/w Cut Outs | 87mm | M45 x 1.5mm |
| T20844 | R24 Small | 70mm | M45 x 1.5mm |
| T22179 | R24 Sprung | 70mm | M45 x 1.5mm |
| T20844 | R24 Compression Rings ‘U’ | 70mm | M45 x 1.5mm |
| T22752 | R24 Compression Rings ‘L’ | 65mm | M45 x 1.5mm |
| T20289 | R28 Straight | 118mm | M56 x 1.5mm |
| T20405 | R28 Right Angle | 105mm | M56 x 1.5mm |
| T22182 | R28 Sprung | 104mm | M56 x 1.5mm |
| T22717 | R28 Compression Rings | 73mm | M56 x 1.5mm |
| T20172/A | R30 Straight | 110mm | M62 x 1.5mm |
| T22185 | R30 Sprung | 104mm | M62 x 1.5mm |
| T22341 | R30 SL Connector | 105mm | M62 x 1.5mm |
| Cable Type | Connector | Connector | Length | |
| Cable Assembly* | C2042 | R24 SL | R28 SL | 5m |
|---|---|---|---|---|
| Flange | T20844 & T22717 | |||
*Example R24-R28 spring loaded cable assembly with straight connectors

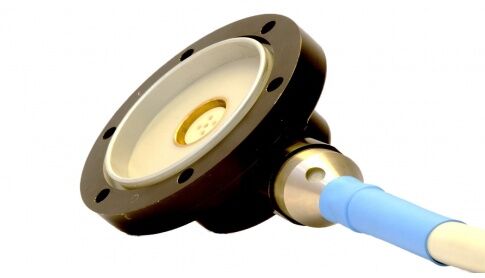

X-ray connector used where sideways voltage is required. This type of connector is available in voltages of 50kV and 75kV.
The recommended maximum AC or DC voltage that may be continuously applied to a wire in conformance with its specification. Some cables have been tested for operation above their rated voltage for a limited time period. For pulsed operation or insulating dielectric environments please contact us.
