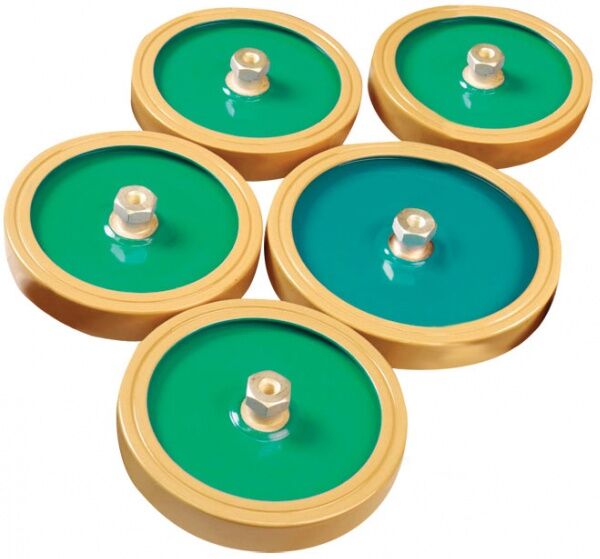

Our CGG81 high voltage ceramic disc capacitors are a radial design capacitor with a high frequency use in dozens of applications. They are used in oscillators, coupling circuits, or bypass capacitors in industrial or medical high frequency equipment and can be implemented with carrier frequency equipment.
Made with a ceramic dielectric, known for its insulation properties, the high voltage, high power capacitors can withstand up to 120kVA. These high frequency power, ceramic disc capacitors can be supplied in diameters ranging from 60mm up to 160mm and have a typical temperature characteristic of -750120ppm/C. The disc capacitor comes with either an M6 or M8 thread, for a secure connection to a high voltage power supply, depending on the size ordered.
| Model Number | Capacitance | Rated Voltage | kVA | Temperature Characteristic |
Dimension (mm) | ||||
| pF | tolerance | DC | high freq | Diameter | H | Thread | |||
| CGG81-01 | 100 | 10% | 12 | 7 | 15 | -750±120ppm/°C | 60 | 40 | M6 |
| CGG81-01 | 300 | 10% | 10 | 7 | 8 | -750±120ppm/°C | 60 | 37 | M6 |
| CGG81-01 | 500 | 10% | 8 | 4 | 8 | -750±120ppm/°C | 60 | 25 | M6 |
| CGG81-02 | 50 | 10% | 12 | 7 | 12 | +100±30ppm/°C | 80 | 34 | M6 |
| CGG81-02 | 300 | 10% | 15 | 8 | 30 | -750±120ppm/°C | 80 | 37 | M6 |
| CGG81-02 | 500 | 10% | 15 | 8 | 15 | -750±120ppm/°C | 80 | 37 | M6 |
| CGG81-02 | 1000 | 10% | 7 | 5 | 15 | -750±120ppm/°C | 80 | 35 | M6 |
| CGG81-03 | 300 | 10% | 25 | 20 | 90 | -750±120ppm/°C | 110 | 55 | M8 |
| CGG81-03 | 500 | 10% | 15 | 10 | 30 | -750±120ppm/°C | 110 | 55 | M8 |
| CGG81-03 | 1000 | 10% | 8 | 7 | 30 | -750±120ppm/°C | 110 | 50 | M8 |
| CGG81-03 | 1500 | 10% | 7 | 7 | 20 | -750±120ppm/°C | 110 | 50 | M8 |
| CGG81-04 | 800 | 10% | 25 | 20 | 90 | -750±120ppm/°C | 140 | 56 | M8 |
| CGG81-04 | 1000 | 10% | 20 | 15 | 100 | -750±120ppm/°C | 140 | 53 | M8 |
| CGG81-04 | 1500 | 10% | 15 | 8 | 90 | -750±120ppm/°C | 140 | 51 | M8 |
| CGG81-05 | 1500 | 10% | 21 | 15 | 120 | -750±120ppm/°C | 160 | 52 | M8 |
| CGG81-05 | 2200 | 10% | 20 | 10 | 120 | -750±120ppm/°C | 160 | 50 | M8 |
HV Capacitor Features
HV Capacitor Applications
