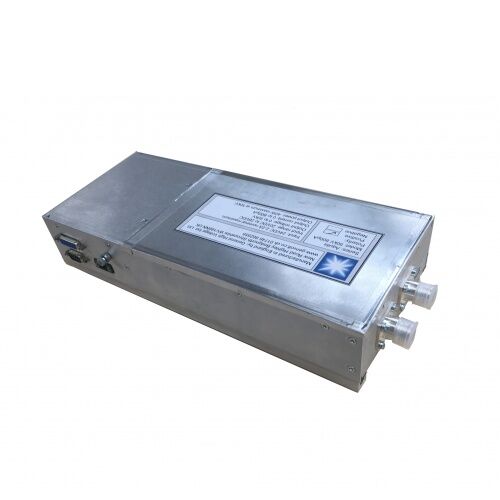

The Aquila high voltage module is a compact low current benchtop power supply offering up to 50kV of output voltage and 40W output power. The supply is designed to operate from a DC power source and is controlled through analogue signals via remote control.
The Aquila was originally designed as a direct industry alternative for use in phase separation and polymer separation processes. This high voltage, low current module make it ideal for a variety of applications outside this process.
The compact size, lightweight and affordability of the Aquila make it a popular addition to our range of laboratory power supplies designed for use in universities and research centres the world over.
Applications include: Phase separation, polymer separation and applications that require a clean and precise power source.
| Input Voltage | 24VDC |
|---|---|
| Input Frequency | DC |
| Output Voltage | 10kV, 20kV, 30kV, 40kV, 50kV |
| Output Power | 40W |
| Polarity | Negative, Positive |
| Output Adjustable Range | 0 to 100% Voltage |
| Voltage Ripple | < 0.5% |
| Load Regulation | 0.5% |
| Line Regulation | 0.5 |
| Stability | 0.01 |
| Operating Temperature | 0°C, 10°C, 15°C, 35°C, 40°C |
| Operating Humidity | 0 to 80% non-condensing |
| Cooling Method | Air |
| Control | Remote |
| Monitoring | Remote |

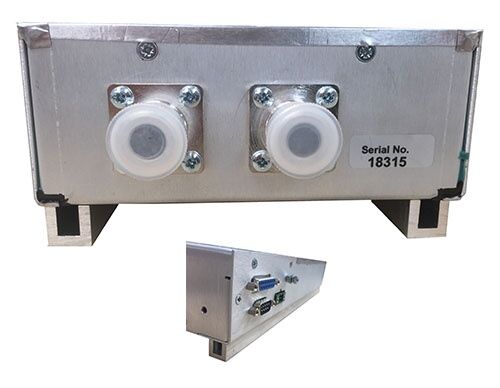

15 way D connector (female) for analogue remote control.
